poker card punching machine

The competitiveness of smart cards or game cards in the market depends on two things: the accuracy of punching and the degree of automation. As a senior equipment supplier in Shenzhen, China, we know that other countries have a great demand for fast and error-free card production. Our new generation poker card punching machine not only can punch and cut cards but also has a 7.5 kW servo drive, an automated system for card sorting and classification, and a collection system that can be customized according to your needs. This article will provide a detailed introduction on how this device can help you utilize new technologies to manufacture more products and provide you with an advantage in the fiercely competitive global market. For this, it will focus on four things: technical details, usage scenarios, competitive advantages, and core parameters.

1. Intelligent sorting logic and high-precision servo drive for poker card punching machine

Our poker card punching machine adopts a fully digital control scheme instead of traditional mechanical punching to ensure that each card has perfect optical beauty and consistency. The high-precision rotary encoder and industrial-grade programmable logic controller constitute the core of the equipment control system. They closely monitor every cutting action in the closed loop. Even if the device runs for a long time, it can maintain stability.

1. Power and control system

The core of this machine is a powerful 7.5 kW servo motor, which works faster and more accurately than ordinary motors or hydraulic motors. This not only provides you with stable and constant punching ability but also allows you to start and stop at any time and lock position during fast driving. When used in conjunction with high-precision ball screws and linear guides, the accuracy of feed stroke control can reach ± 0.10 mm to ± 0.15 mm. The design of this high-rigidity transmission device ensures that the mold can maintain perfect alignment even after millions of rapid stamping cuts. This eliminates edge burrs and stamping deformations, giving the product a unique and aesthetically pleasing feel. In terms of power transmission, the servo system consumes more than 30% less energy than traditional clutch punch presses. It also keeps the noise level below 75 decibels, making the workplace more comfortable for employees.

2. Automatic sorting and visual inspection

Unlike other card punching machines on the market, this poker card punching machine can classify and sort cards by itself. This machine can automatically detect printing errors, color differences, or stains during stamping and forming. It achieves this through high-sensitivity photoelectric sensors and optional visual inspection systems. The visual inspection system is equipped with a CCD camera specially designed for the factory, with a resolution of over 5 million pixels. This camera can detect defects as small as 0.1 millimeters, so every card produced meets the quality standards of the high-end market.

• Data processing: The control system tracks the cutting frequency and waste amount in real time. Afterwards, it will sort out the good products from the garbage by itself. You can send production data to the factory MES system through an Ethernet connection. This enables you to manage the production process digitally, which helps managers focus on the progress and quality of production.

• Intelligent sorting logic: This device can automatically sort different card faces based on common multi-pattern layouts of playing cards and game cards (such as 5×5, 5×6, 3×8, etc.). This intelligent recognition function can distinguish the differences between very similar patterns with an accuracy of over 99.5%. It uses advanced image algorithms to achieve this.

3. Customized collection system for finished products

The main purpose of this device is to make manual card management easier. We have a dual-mode intelligent material receiving system that has been tested in real-world production. This system can help companies save over 80% of card management costs:

• Collect in order: The equipment stacks cards through separate channels to ensure that unloading orders match production orders exactly, so there is no need to manually rearrange them in the future. This is important for cards that require maintaining a certain order, such as color order or process order. The pneumatic leveling device on the receiving platform keeps each stack of cards clean and even. This makes the next step in the packaging process easy to complete immediately.

• Classified by type: This device can automatically classify punched cards into different collection slots for playing cards of different suits or game cards of different types. This separates raw materials from finished products. Each collection slot has a counter that stops or sounds an alarm when the set quantity is reached. This is the reason why true unmanned automatic packaging pre-processing has become possible.

2、 Multi-scenario application of poker card punching machine

This machine is not just a card-making machine, as it can also process cards and other special materials. It has the function of “one machine for multiple uses.” After more than 15 years of global market testing, this equipment has been successfully applied to material processing scenarios in over 30 different industries. This indicates that it can be used in multiple different ways and is reliable.

1. Smart card and entertainment game market

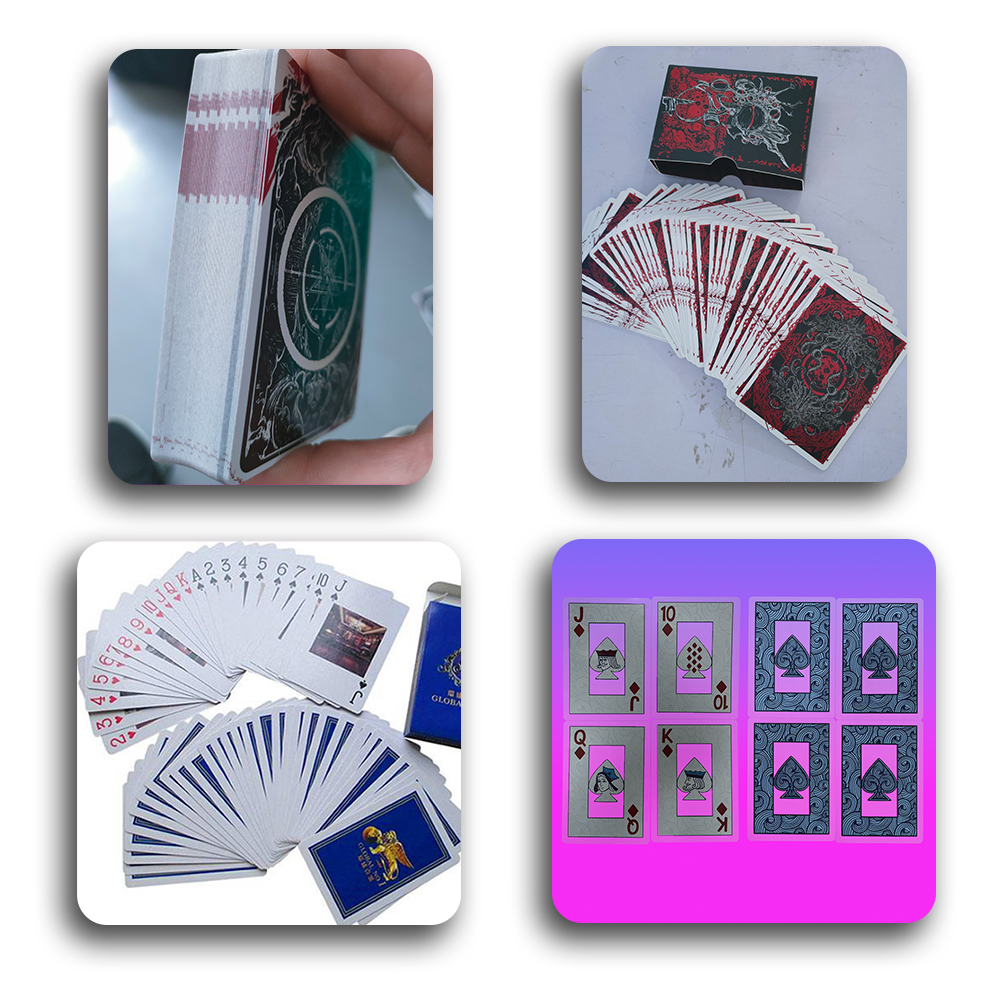

This simple poker card punching machine is suitable for copperplate paper, PVC, PET, and composite materials. It produces high-quality bridge cards, poker cards, tarot cards, and collectible cards for anime fans. When making high-end playing cards, this device can handle black core paper weighing over 300 grams. You can cut and shape this paper at once, and it will feel great in your hand because the corners are circular and there are no burrs. This device is also suitable for stamping smart cards, bank cards, membership cards, and RFID radio frequency cards. It can place the chip and antenna laminated structure in the correct position inside the card holder, thereby reducing the scrap rate. For contact IC cards with chips, the machine has a special buffering and pressing system that can prevent the chip from being damaged by the force of the punch. The yield can reach over 99.8%.

2. Industrial and special material processing (filter paper)

Because it has strong servo pressure and can be easily replaced to adapt to different molds, this equipment can be used in many different fields, such as industry:

Filter paper and scientific consumables: The equipment can punch cellulose material filter paper when making laboratory supplies. It can also punch filter paper and other scientific supplies. The edge of the filter paper needs to be very smooth; any rough area will reduce the filtering effect. This machine fully complies with this industry standard because it stamps accurately and does not leave any rough edges. The device adopts the secondary positioning technology of upper and lower molds to ensure that the punching process will not crush the filter paper fibers. This maintains the original filtering performance of the filter paper and demonstrates the adaptability of the device in different industries.

3. High-end hot stamping process linkage

This device has space and connections that match hot stamping technology, which can help you make your products more valuable. You can add hot stamping to the edges or surfaces of the card by connecting it to a hot stamping machine before cutting it. This makes the “hot stamping integrated” luxury version card highly competitive in the high-end poker and invitation card markets. The connection between hot stamping and die-cutting solves the problem of positioning errors that often occur in traditional methods after hot stamping and die-cutting. You can control the distance between the hot stamping edges within 0.2 mm to make the product look very beautiful. You can use the same mold for hot stamping and stamping, and you can recover your money within 6 to 8 months.

3. Global market competitive advantage

We are a manufacturer based in Shenzhen, China. Our advanced technology and complete customized solutions have helped us establish unique barriers in the global market. Our equipment has been shipped to over 50 countries and regions, including Germany, the United States, Japan, Brazil, and India. It has gained the trust of customers around the world because it has also passed international safety tests such as CE and UL.

1. Unique texture and strength

Our equipment base is made of high-strength cast iron or an integral welded structure that has been treated to eliminate internal stress. This makes it powerful enough to withstand earthquakes and operate at high speeds for extended periods of time. The main moving parts use well-known brands of linear guides and bearings, with a service life of over ten years. This mechanical stability gives the product a unique feel. The corners of the perforated card are rounded and full, and the edges are smooth. There are no white edges like traditional stamping. This makes the appearance and feel of the finished product much better. High-end gaming card players will seek this level of detail. The testing of the equipment running continuously at full load for 24 hours is progressing smoothly. The temperature rise is kept within the allowable range, and the size is stable within ± 0.02 mm, which is very suitable for all-weather production.

2. Mature technology and low maintenance costs

We have many years of experience in shipping equipment to other countries, so we use well-known brands such as Siemens PLC and Schneider Electric for electrical and pneumatic components. This ensures that they can be effective in various difficult situations. The equipment’s fault self-diagnosis system can display fault codes and solutions in real time. This saves communication and downtime for overseas customers. The maintenance cycle has been carefully considered, and there are automatic systems in the main areas that require lubrication. The operator only needs to clean the filter once a month and check the oil level once a week. This makes it easier to keep up with daily tasks. We provide detailed maintenance manuals and video tutorials in multiple languages to ensure that customer technicians can quickly understand what they need to do.

3. Integrated customized overall solution

We are not just poker players. We also provide complete customized solutions, including designing stamping molds, printing cards, and extracting finished products. Our team’s engineers have an average of over 10 years of experience. They can provide professional advice on the process and manufacture suitable equipment for each customer.

Mold customization: We can quickly produce high-precision molds based on the card drawings or samples you send us. The mold is made of Cr12MoV alloy steel, which is heated and vacuumed before being frozen. The hardness can reach HRC58-62, and the service life can exceed 3 million times. We use slow wire cutting processing technology to ensure that the distance between the molds is the same and that the stamped edges have the highest quality for shapes such as irregular cards and circular cards.

Add production line: Whether your upstream is a printing press or a laminating machine, our equipment can easily adapt to existing production lines by changing the height of the feeding platform and positioning system. We provide a complete automation connection solution for customers to connect automatic cutting machines or automatic packaging machines. This includes conveyor belts, steering systems, buffering devices, etc. This will automate the entire process from printing to finished products.

Easy to use: The human-machine interface has a touch screen that displays graphics, and operators only need a little training to start using it. You only need to click once to change the settings, which solves the problem of insufficient technical personnel in other countries. This device comes with fifty sets of common product formulas. You only need to call the correct formula when switching products, and all settings will be changed by you. Changing orders only takes less than five minutes, making small-scale and multi-variety production more efficient.

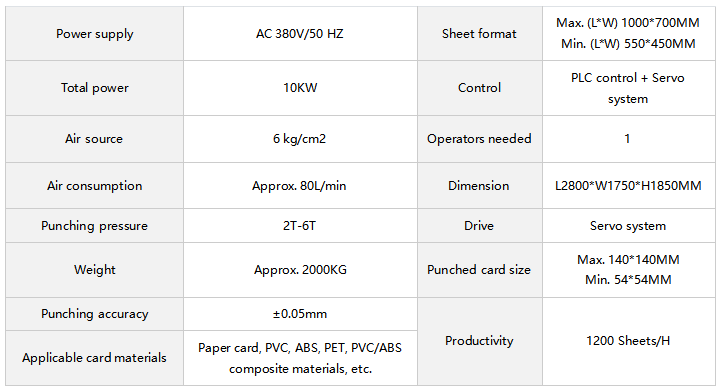

4、 Product Technical Parameters

These are the most important technical specifications that will help you better understand the working principle of the equipment. We test all parameters according to ISO and CE standards to ensure that the output remains stable under different global grid settings to meet the needs of customers around the world.

Summary:

The business card printing industry is becoming increasingly competitive on a global scale. The best way to maintain a leading position is to invest in a highly automated and precise set of production tools. With a servo power of 7.5 KW, a punching accuracy of ± 0.15 mm, and the best automatic sorting and collection function in the industry, our poker card punching machine is the best. It can not only meet your production needs but also make the material flow in the factory more efficient. We are a top equipment service provider in Shenzhen, China, dedicated to providing global customers with comprehensive support from equipment to processing through customized solutions. This will make your product stand out in the global market. We know that having the right tools is the key to your success, and our complete after-sales service system will ensure the continuous operation of your business. When you choose us, you choose professionalism, reliability, and the future.
