Jigsaw card punching machine

Industry pain points

As a leisure product, the puzzle’s exquisite design, which carries cultural and creative value, makes it necessary to solve some specific and unique technical problems in the production process. However, some common puzzle production equipment cannot meet the following basic production needs.

The stamping accuracy is as high as possible so that each piece of the puzzle can be seamlessly engaged.

The edges must be smooth and free of burrs to enhance the user experience.

Adapt and adjust to different levels of design complexity, from children’s puzzles to complex adult puzzles.

The production materials can be diversified, and the base materials, such as paper, wood, and plastic, can be used.

Equipment positioning of jigsaw card punching machine

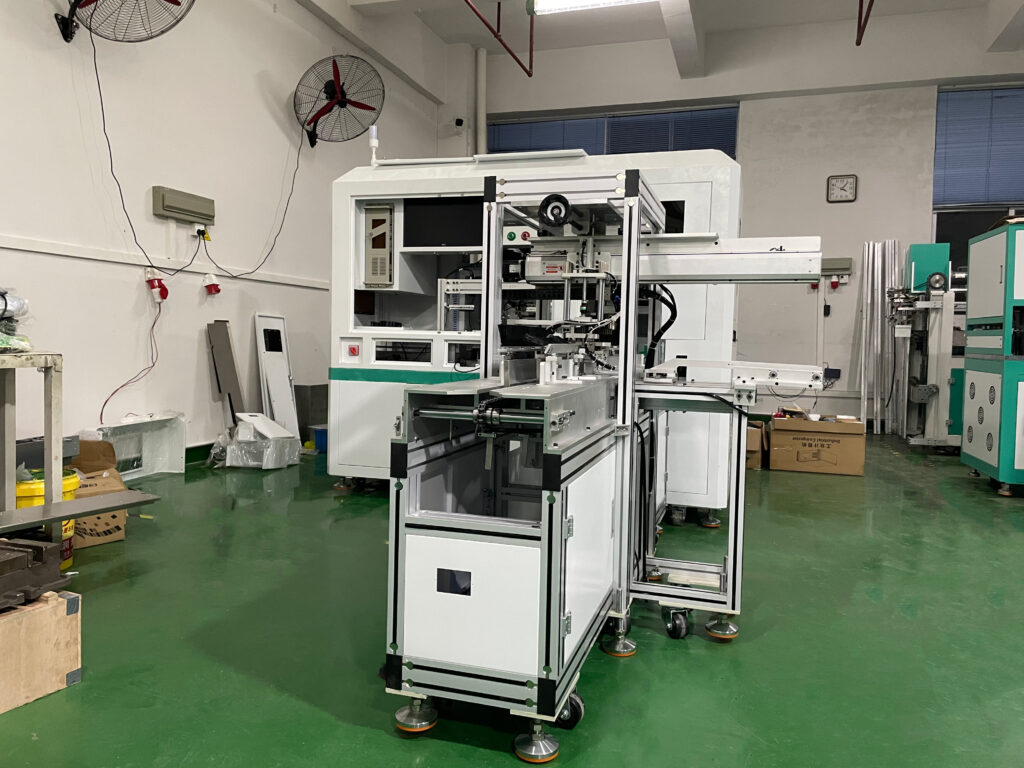

The puzzle card punching machine, which can punch, sort, and collect in one, provides a complete production solution for puzzle production enterprises and represents the high-end equipment in the puzzle manufacturing industry.

Core technology advantages of punching machine

1. Precision die-cutting system designed specifically for jigsaw puzzles

Our punch presses achieve unparalleled precision and control thanks to proprietary die designs and state-of-the-art pressure control, resulting in puzzle seams that align perfectly. Unlike traditional equipment, our equipment can achieve:

The puzzle bite accuracy is ±0.1 mm, and the puzzle pieces are perfectly integrated.

20-2000 pieces of puzzle design, with different difficulty puzzle selections.

Special blade treatment technology eliminates burrs and smooths edges.

2. Adaptability to various puzzle materials

Paper jigsaw puzzle: gray board, white cardboard, and other special paper.

Wooden jigsaw puzzle: Support precision stamping of 3-5 mm thick wooden boards.

Plastic jigsaw puzzle: The processing of plastic materials such as PVC and ABS is also applicable.

Special materials: Other special categories include glow-in-the-dark puzzles and magnetic puzzles.

3. The automation revolution in jigsaw puzzle production

Puzzle production automation revolution The automation system of integrated equipment has brought a revolution to puzzle production:

Puzzle sorting and classifying automation system by region.

The intelligent system detects, evaluates, and automatically collects the jigsaw puzzles after stamping.

The 7.5 kW servo system provides stable power and breaks the consistency of mass production.

4. The infinite possibilities of puzzle customization

In response to the personalized needs of the industry, the equipment provides customized support:

Quick and easy mold replacement, easily coping with the switching needs of different puzzle patterns.

Support exclusive custom puzzle production.

Optional hot stamping, UV, and other additional units can be selected to realize various surface treatment processes.

5. Production process optimization

The production process of a jigsaw puzzle: design → printing → die cutting → sorting → packaging (many links, scattered equipment).

6. Optimized process for using jigsaw card punching machine:

The jigsaw puzzle card punching and cutting machine simplifies the process: design → printing → integrated punching and cutting sorting → packaging (integrated production). Puzzle manufacturers can save more than 30% of equipment costs. Production efficiency increased by 40%. The error rate of manual sorting has been reduced to less than 1%.

Application case of puzzle card punching machine

Case

One of our clients has achieved automatic punching, sorting, and collection using three machines: now only two employees are needed. The daily production has increased from 5000 boxes to 8000 boxes. The product defect rate has been reduced from 3% to 0.5%.

His client is a children’s puzzle manufacturer with very strict safety standards. The multiple detection system of the puzzle card punching machine ensures the quality of various puzzle components: continuous monitoring of stamping quality; Adopting an automatic size detection system; Check and verify the smoothness of the edges; Evaluate the cutting and punching quality of the puzzle through bite testing. Jigsaw card punching machine technical service support: providing comprehensive puzzle design and production support for puzzle manufacturers: suggestions for optimizing production processes; Suggestions for optimizing production processes; Train equipment operators. 24-hour remote technical support for puzzle card punching machine market competitiveness analysis. Compared with traditional puzzle production equipment, puzzle card punching machine has obvious advantages in the following aspects:

Accuracy comparison with traditional equipment: ± 0.3 millimeters. This equipment has a precision of ± 0.1 millimeters

Production efficiency: Traditional equipment: 3000-4000 boxes/day. This equipment: 6000-8000 boxes/day

Automation level: Traditional equipment requires multiple devices to work together. This equipment is an integrated automation production solution.

Conclusion

The introduction of the jigsaw card punching machine has changed the technical standards of jigsaw production. The equipment solved the accuracy and speed problems of jigsaw puzzle production for the first time and provided the potential for future production for jigsaw puzzle production enterprises. The equipment excels at producing traditional paper puzzles as well as modern wooden and plastic puzzles.

As a pioneering equipment manufacturer in the jigsaw puzzle manufacturing industry, we prioritize and invest in technological advancement to help jigsaw puzzle production companies around the world improve their competitiveness and produce more exquisite jigsaw puzzles.
