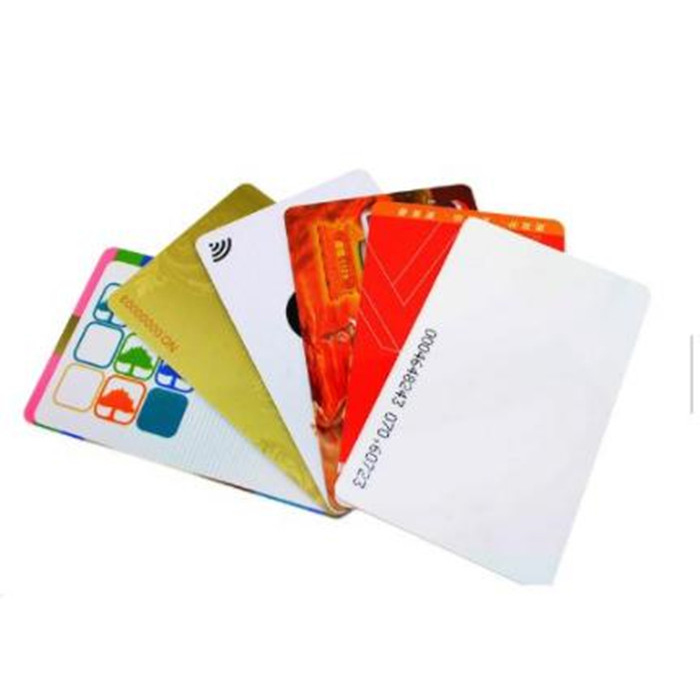

In the field of card production and manufacturing, the quality of the surface directly determines the grade and service life of the final product. Membership cards and gift cards are high-frequency commercial carriers, always painful to printing companies due to surface scratches, indentations and worn printed patterns. The appearance of smart card punching machines provides a complete technical solution for such problems. In this article, we will mainly discuss three topics: scratch prevention in the punching process for mirror PVC and matte card, prevention of secondary damage resulting from manual intervention in the automatic feeding system, and data security punching of magnetic stripe card and barcode card. It will explain from a technical perspective the surface protection process for smart card punching machines in the production of membership cards and gift cards.
Mirror PVC and matte card: How to avoid scratches and dents on the surface of the card during the punching process?
The mid-to-high-end membership card market prefers mirror PVC cards because of their high smoothness and vivid colors, but the disadvantage of this surface treatment method is also obvious—the shiny surface is prone to showing scratches. The matte cards are less sensitive to the scratches visually, but if the equipment accuracy is not good or the process parameters are not set properly in the punching process, it may also leave the indentation marks, which affects the final look of the card.
From the perspective of the material properties, the PVC material itself has certain ductility and surface hardness, but the scratches in the punching process are mainly caused by the mechanical contact links. In traditional punching and cutting processes, scratches on the card surface are usually caused by the following factors: first, the smoothness of the steel plate is not enough, resulting in the wear of the surface of the PVC sheet in the synthesis process; The second problem is that the punching pressure is too high, resulting in plastic deformation of the card in the punching area; The third problem is the wear of the mold blade, leaving burrs and indentations on the cutting edge. The smart card punching machine uses a layout visual correction positioning system and a precise pressure control mechanism in order to reduce the mechanical contact damage to the card surface from the source to solve these problems.
In practical operation, the visual correction positioning system can automatically identify the positioning marks on the printed pattern, correct the punching position of each card in real time, and the punching accuracy can reach ± 0.1mm. The direct benefit of this high-precision positioning is that the mold can accurately align with the middle area of adjacent two cards during the punching process and avoid mold indentation on the surface of the finished card. This process improvement is especially visible for mirror PVC cards. Traditional equipment requires manual removal of creased waste products one by one after punching. The application of visual positioning technology can reduce the waste rate to below 30% of the original level, and greatly reduce the white mist on the card surface caused by heavy pressure. The non reflective aspect of the frosted surface of matte cards makes minor scratching less noticeable but precision punching is still the best method to ensure that the overall texture of the card surface is not compromised.
Automatic suction and feeding system of smart card punch machine, to minimize secondary damages caused by manual intervention
Cards coming from the printing process into the punching process have to be manually transported and positioned several times. In this process, the operator’s hand contact, friction between the cards and the repeated adjustments during the positioning process can all lead to irreversible scratches on the surface of the card. This is almost one of the biggest quality control challenges for every card production factory.
This is the place the automatic suction and feeding system of the smart card punching machine provides a systematic solution. The automatic feeding device adopts the vacuum generator with suction head. The action timing of the suction cylinder is precisely controlled by the PLC control system, so that the automatic feeding from the card issuing box to the end of the guide rail is realized. Compared with the traditional manual card delivery, this automated structure not only avoids the risk of direct human contact with the card surface, but also avoids the double sheet joint and card surface friction caused by overlapping card delivery.
The technical core of this system is the step-by-step feeding. The equipment uses a high-sensitivity positioning sensor in conjunction with a servo motor-driven ball screw module and operates in a step-by-step rhythm of “feeding punching re feeding”. Unlike traditional continuous feeding methods, step-by-step feeding can accurately control the feeding amount of each step to the millimeter level, ensuring that each card enters the mold in a stable position without surface scratches caused by inertial sliding. At the receiving end, the equipment has two methods for collecting finished products: One is Collect in order, suitable for scenarios where the card order is required for subsequent processes; The second is to Collect cards by classification, which can independently transport cards from different mold cavities to different receiving boxes, completely replacing manual card sorting operations. During the process, the waste is automatically stacked and collected by a robotic arm, and the scraps are conveyed to the waste bin through the discharge port. According to the actual production data, the complete automatic suction and feeding system can reduce the manual intervention by more than 60%, and the rate of card surface scratches related to the operation contact can be reduced by about 70% -80%.
Magnetic stripe card and barcode card: How to avoid the data reading area being damaged by the punching edge?
The cutting accuracy required for magnetic stripe cards and barcode cards is much higher than for ordinary PVC cards. Magnetic stripe is a thin layer of magnetic medium laid on the surface of the card and the effectiveness of data reading depends on the integrity of the physical state of the magnetic stripe. The cutting blade touches the edge of the magnetic strip when the edge distance of the punching edge is insufficient or the mold positioning is inaccurate, which may cause the magnetic strip to peel off partially, resulting in card reading stuttering. In the most serious cases, the magnetic strip circuit can be directly cut off to scrap it completely. In the same way, if the barcode area of the barcode card is covered by cutting edges or shifted from its position, the scanning terminal will not be able to recognize it.
The distance between the magnetic stripe and the card frame (up and down direction) is at least 4mm, and the width is 12mm, according to the industry standards. The distance between the convex code and the card edge must be greater than 5mm. The layout visual correction and positioning system of smart card punching machines play a key role to meet these precision requirements. The system reads the reference marks (positioning cursor) printed on the card material through a high-resolution CCD camera, and automatically identifies the actual position deviation of each workpiece, and drives the servo motor to perform real-time position correction in the X-axis and θ axis directions. The core value of this mechanism is that the cutting accuracy is no longer affected by the cutting accuracy of the material edge, and even if there is a slight deviation in the printing color, the equipment can guarantee that the magnetic stripe area and barcode area are always within the safe cutting range.
Regarding the configuration of punching power, the smart card punching machine adopts the high-power servo motor (7.5KW) as the punching power source, and the ball screw modules with high precision for alternating feeding. The advantages of servo systems are adjustable speed, fast response and stable torque output, which can keep the cutting quality and edge consistency consistent when punching PVC materials of different thicknesses. The device can also perform seamless die-cutting: thanks to a precise pressure control system, each row of cards is automatically peeled off after punching, without the need for extra force to separate, thus preventing secondary damage to the card edges and printed areas from pulling during the separation process. After the introduction of this high-precision positioning and servo cutting process, the cutting error of the magnetic stripe area can be controlled within ± 0.1mm, and the retention accuracy of the barcode area can also reach this level. The data reading area is damaged at a rate close to zero.
Summary
According to the technical analysis of the above three dimensions, the smart card punching machine has established a triple protection system for the surface protection of membership cards and gift cards, including “scratch prevention, injury prevention and accidental cutting prevention”.
Lightweight wooden molds only need to spend 2-3 minutes to complete the mold replacement, and order switching and machine adjustment only need about 15 minutes in terms of mold replacement speed. The efficiency has increased by more than 90% compared with the replacement of traditional metal molds, which takes more than 30 minutes. From the perspective of punching accuracy, the visual correction positioning system can control the punching deviation within ±0.1mm, which is close to the precision limit of high-end equipment in the field of card manufacturing. From the point of view of surface quality, the seamless die-cutting technology completely removes the tearing burrs caused by residual connection points, and the punching edge is smooth and flawless. The mirror card and the matte card can both maintain a scratch free factory state.
In actual operation, the key for card making enterprises is the breadth of order types that the equipment can support – smart card punching machines are widely used in the punching production of various card products such as cards, smart cards, business cards, game cards, playing cards, anime cards, bank cards, star cards, etc. The material range of interest includes different substrates such as paper, film, PVC, ABS, PET and soft magnetic sheets. The core technical system for the equipment- “layout visual correction positioning+step-by-step precise feeding+seamless die-cutting” is not only an effective way to solve the surface scratches problem, but also technical support for the realization of the “short, flat, fast” small batch order production mode.
From a data point of view, the 7.5KW servo system guarantees the stable punching of the materials with different thicknesses; The material receiving system can realize the sequential collection and classified collection at the same time, and the end can be connected with the overall solution of package at the backend; The production response speed of 2-3 minutes for mold replacement and 15 minutes for order switching has truly given the printing enterprises the equipment capacity to be able to respond to the market demand of diversified, small-batch and fast delivery. The smart card punching machine is a solution for the card manufacturing industry to ensure surface quality from the technical source with a compact mechanical structure and intelligent control system.
